Electronics Weighbridge

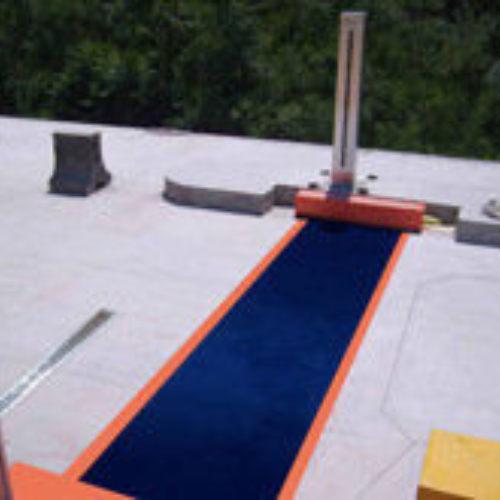

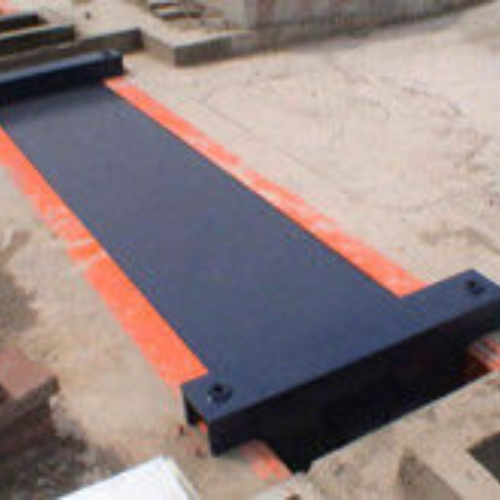

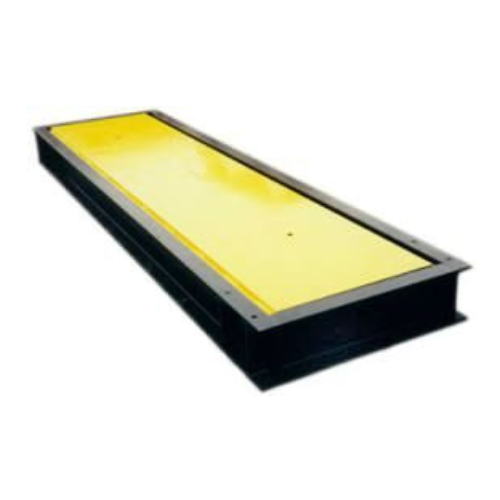

Electronics Weighbridge - SINGLE AXLE

Axle weighbridges find applications in the mining and the construction industry. These weighbridges are also used to determine axle weight overload. They are also heavily used at check posts. There are several benefits of using the axle weighbridge. First and foremost, they offer complete ease of usage.

As the vehicle drives over the top of the platform at a very low speed, the electronics accurately record the weight of each axle as the vehicle is moving on the platform. Our products are easy to install, requires less space and are known for inexpensive pit construction. We also install our products as per the clients’ requirements. In addition, they are in compliance with the international quality standards.

We are affianced in offering the best quality single axle truck scale. This scale is well-suited for installation at mining, crusher, warehouses and factories for the quick and swift reading of weights of vehicles.

It is manufactured by our skilled professionals using optimal quality components and progressive techniques. Further, we offer this single axle static weighbridge to the clients at marginal prices.

Shifting axle weigh bridge can be done quickly and needs only a small pickup truck for transportation. Axle weighs bridges are a very cost-effective solution, the user benefits from the low equipment cost, low cost of civil work & installation and hence rapid recovery on investment. Civil work takes only 3 to 4 days’ time and the installation can be done in just one day. With its many advantages and cost benefits, axle weigh bridge is a highly rewarding solution with no compromise.

Features

Type of System : Single Axle Weighbridge
Standard Size : 3000 X 700 mm / 3200 X 700 mm
• Maximum axle weight 30 Mt / 40 Mt
• Static Weighing Application
• Axle wise printout facility
• Large record backup system
• High precision compression / Shear Beam Load cell
• Large Outdoor Display (Door Display)

Easy Installation

The Single Axle Weighbridge is factory calibrated, so on-site installation is very easy. The weighbridge is delivered as a ready to install system, so that it can be installed into a pre-prepared pit. A Griffith Elder pit frame can be used to simplify construction and ensure that the weighbridge is located correctly.

Built to last – Rugged & Durable

The Single Axle Weighbridge is particularly suited to sites where large volumes of traffic are to be weighed. The heavy duty construction and simplicity of the design guarantees a long lasting, reliable weighbridge, while continuously maintaining high accuracy for weighing.

Close Coupled Axles

Single axle, tandem axle and tri-axle combinations are all easily weighed with maximum precision as each axle weight is captured individually. The weighbridge is recessed into the ground guaranteeing maximum accuracy, as there is no adjustment in the centre of gravity of the vehicle.

The Single Axle Weighbridge is particularly suited to sites where large volumes of traffic are to be weighed. The heavy duty construction and simplicity of the design guarantees a long lasting, reliable weighbridge, while continuously maintaining high accuracy for weighing.

Benefits Of Single Axle Weighbridges

Raft foundation helps in Low cost of ownership.

Strong construction, reliable & long life

Fully Welded Platform Structure

Flexible Module Design

Easy loading/unloading Quick Installation

Box Channel (Hollow) & Fully Welded I-Beam Type

23

Checkered & Plane plate with anti-skid strips

Platform Length : 6 Meter ~ 24 Meter

Platform Width : 3 Meter ~ 4 Meter

Accuracy Class : OIML approved Class – III

Weighing Capacity : 200 t

Both Side Vehicle Guide Rails

Product Showcase

Product Video
