The load cell is the part of any scale that measures the weight or force being applied. The cells convert the force of the load into an electrical
signal, which is further processed by a digital indicator. A weighbridge can have 4 / 6 / 8 / 10 / 12 or even more load cells.
In basic terms, the load cell is the part of any scale that measures the weight or forced being applied. The cells convert the force of the load into
an electrical signal, which is then read and displayed by a weight indictor. Load cells come in a range of different sizes, shapes, capacities and
performance parameters. However, in the context of truck weighbridges, the basic distinction is 'analogue' and 'digital' load cells. Generally
speaking, both analogue and digital cells use the same strain-gauge technology – but differ in terms of output of the load cell and therefore offer
different benefits depending on the usage.

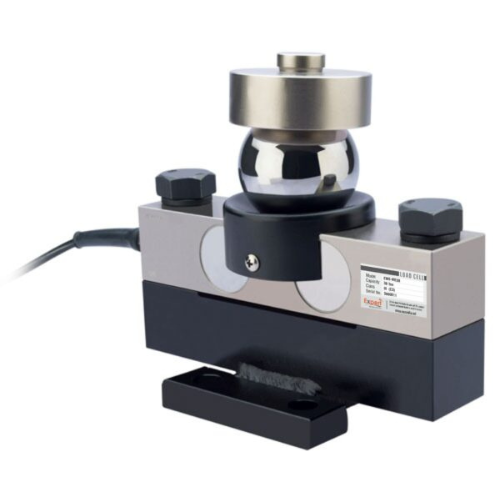

MULTI ENDED SHER BEAM TYPE (CUP & BALL)
International Organization for Legal Metrology (OIML) is the highest body governing performance standards of load cells and weighing equipment. India is a member country of OIML. Load cells certified for compliance to OIML R-60 standards are globally accepted as mark of performance & quality.
Analogue load cells are the most common system. The output of analogue load cell is a continuous millivolt (mV) signal proportional to the applied load. Further processing and Analogue-to-Digital (A-to-D) conversion is done in the indicator. Analogue load cells can easily be paired with a variety of digital indicators across multiple brands. The load cells are further differentiated by design e.g. Compression, Shear-beam type.
ROCKER COLUMN COMPRESSION
Also known as canister type due to shape of its housing, these are
the most popular choice for weighbridges in India. Compression
type load cells using self-aligning (rocker) mounting enable the
structure to float freely on the load cells. Excellent sealing and
environmental protection is feasible. It is recommended to go for
IP68 (immersion) and IP69K (pressure cleaning) certified
products and with stainless steel construction for longer useful
Compression load cells are column shaped force sensors. These compression load cells are named after the way they deflect. The deflection is in compression. Inside of a compression load cell one or multiple columns are installed.

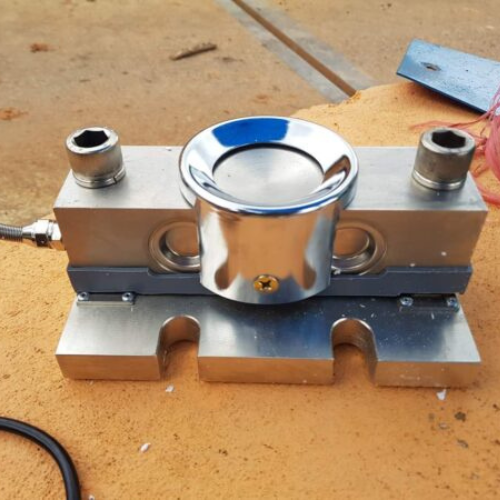

• Type of Load Cell : Multi Ended Shear Beam Type Load Cells • Capacity Range : 30 Mt/40 Mt • Inbuilt Lightning Protection : Electronic Gas Discharge Tubes • Type of Signal : Analog Type Signal Output • Electronic Gas Discharge Tubes for Protection • High Side Load Tolerance • Industrial Protection IP68 • Electroless Nickel Plated Tool Alloys Steel • True Hermetically Sealing • Inbuilt Temp. Protection & Surge Protection • 3000 divisions OIML R60 Class C
Pre-Cal Digital Type

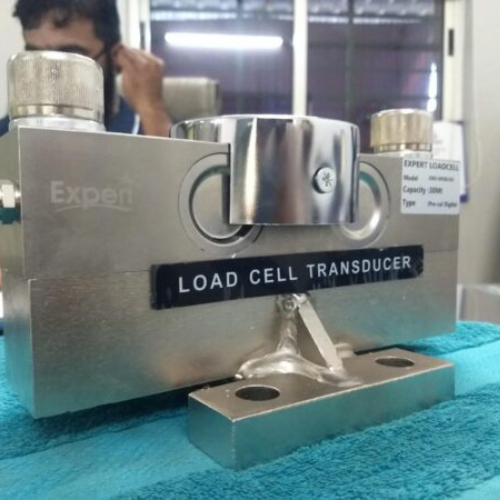

• Type of Load Cell : Multi Ended Shear Beam Type Load Cells • Capacity Range : 30 Mt/40 Mt • Inbuilt Lightning Protection : Electronic Gas Discharge Tubes • Type of Signal : PRE-CALIBRATED Digital Type • Easy Corner Compensation of the weighbridge • High Side Load Tolerance • Extensive internal diagnostics • Electroless Nickel Plated Tool Alloys Steel • True Hermetically Sealing • Inbuilt Temp. Protection & Surge Protection • Maximum transmission distance 1200m
Weighbridge Load Cell
High overload tolerance
Self centering design
Electroless nickel plated alloy tool steel
Inbuilt Lightning Protection
100% Water Proof & Dust Proof
