Foundationless Weighbridge - MODULAR

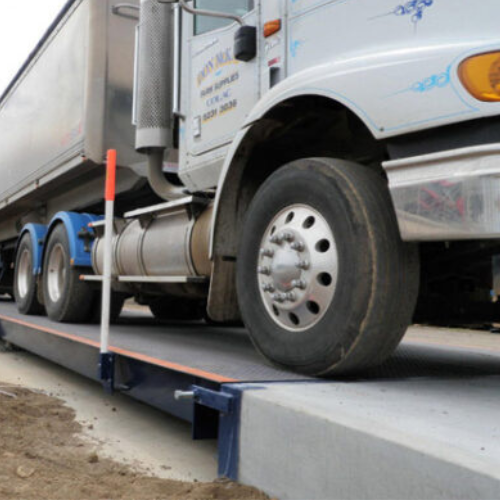

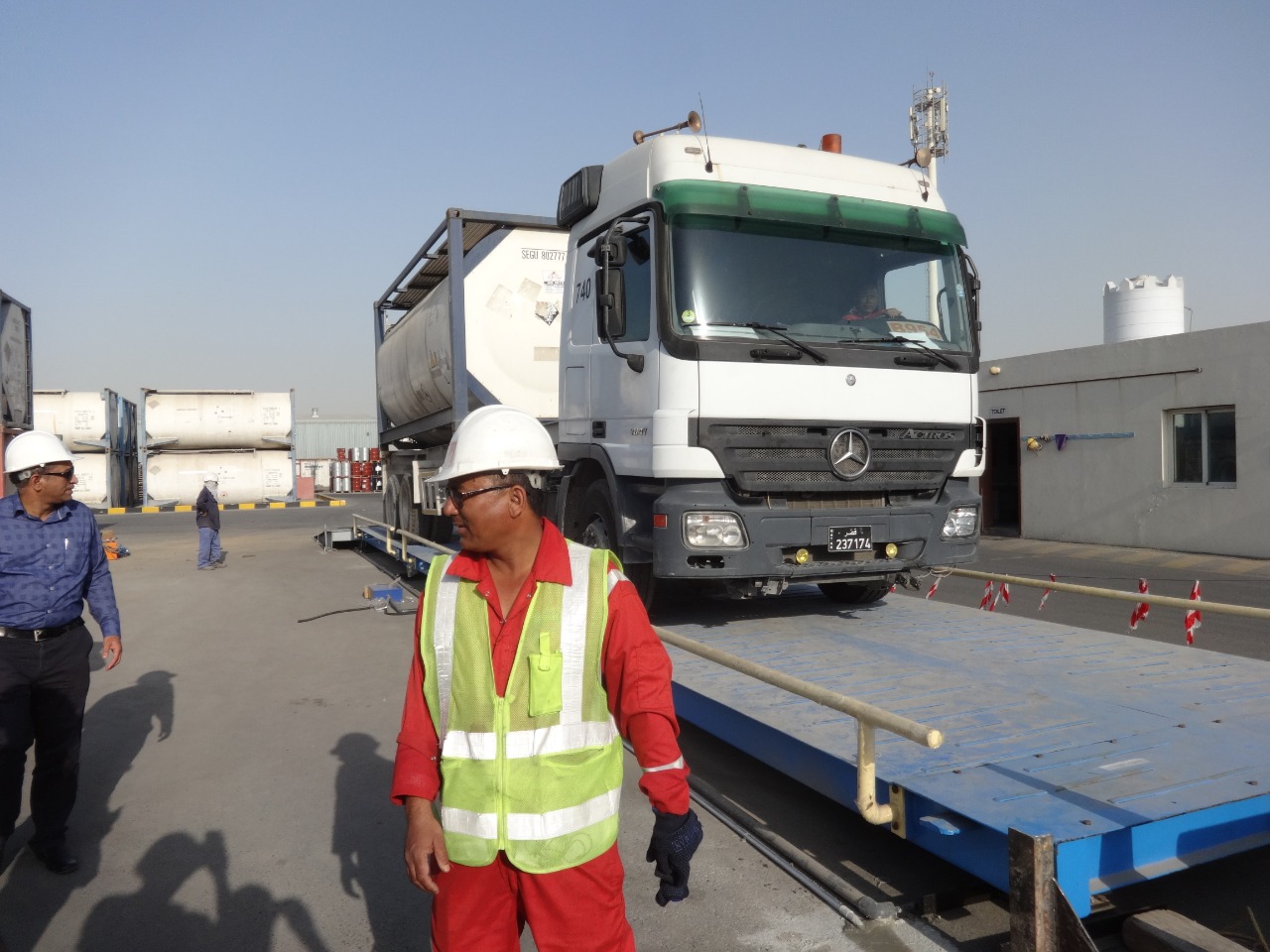

Modular Truck Scale needs no foundation, just smooth hard surface on which the load cell plates rest. This saves lots of cost and time. Pit / Pitless weighbridge foundation and installation takes 2-3 months while Modular Truck Scale can be installed in 2 hours. The modular design helps in easy cost-effective transportation and re-installation.

Main feature of Modular Weighbridge is “Ease of Erection”. Modular Weighbridge can be dismantled easily and again erected with ease at any other location.

This is a new and revolutionary concept that offers high level of accuracy and lowest level of maintenance than major of the other weigh bridges. Available in both pit and surface mounted variants; modular weighbridge provides a very cost-effective system for a wide range of applications. All the weighbridges available today whether pit or pitless requires civil foundation costing at least Rs. 4 lakhs to Rs.6 Lakhs. This could be minimized to a great extent by installing our weighbridge. Our weighbridge could be installed as a pit mounted or pitless type permanently in a site if need arises. We hope that your choice of adapting a latest technology in weighing system is much brighter and hence, we kindly request you to consider our offer favorably.

RAMPS: In the case of surface mounted weighbridges, approach ramps are required which can be of concrete or steel structure. Remember that ramps take the brute force of being hit by a vehicle as it mounts the ramp. Concrete can offer longevity, while steel is ideal if the weighbridge is likely to be moved.

This type of installation is better suited when the bridge may need to be shifted, or for temporary (sometimes called ‘portable’) installations.In most cases the site conditions, such as availability of space, will dictate the type of weighbridge available to you. Both surface and pit mounted weighbridges require a firm surface with load bearing capacity, the details of which will be specified in the ‘Plan of Foundation’ drawings provided by the weighbridge supplier.It may be advantageous to choose a weighbridge which has a common structural design for surface and pit mounting, this will allow future flexibility for changing the type of weighbridge

Benefits Of Modular Weighbridges

Raft foundation helps in Low cost of ownership.

Strong construction, reliable & long life

Fully Welded Platform Structure

Flexible Module Design

Easy loading/unloading Quick Installation

Box Channel (Hollow) & Fully Welded I-Beam Type


Checkered & Plane plate with anti-skid strips

Platform Length : 6 Meter ~ 24 Meter

Platform Width : 3 Meter ~ 4 Meter

Accuracy Class : OIML approved Class – III

Weighing Capacity : 200 t

Both Side Vehicle Guide Rails
