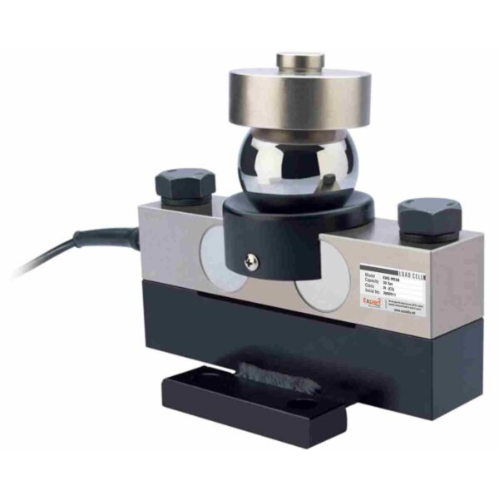

Load Cells- Multi Ended Shear Beam Type

Analogue load cells are the most common system. The output of analogue load cell is a continuous millivolt (mV) signal proportional to the applied load. Further processing and Analogue-to-Digital (A-to-D) conversion is done in the indicator.

Analogue load cells can easily be paired with a variety of digital indicators across multiple brands. The load cells are further differentiated by design e.g. Compression, Shear-beam type.

The load cell is the part of any scale that measures the weight or force being applied. The cells convert the force of the load into an electrical signal, which is further processed by a digital indicator. A weighbridge can have 4 / 6 / 8 / 10 / 12 or even more load cells.

In basic terms, the load cell is the part of any scale that measures the weight or forced being applied. The cells convert the force of the load into an electrical signal, which is then read and displayed by a weight indictor. Load cells come in a range of different sizes, shapes, capacities and performance parameters. However, in the context of truck weighbridges, the basic distinction is 'analogue' and 'digital' load cells. Generally speaking, both analogue and digital cells use the same strain-gauge technology – but differ in terms of output of the load cell and therefore offer different benefits depending on the usage.

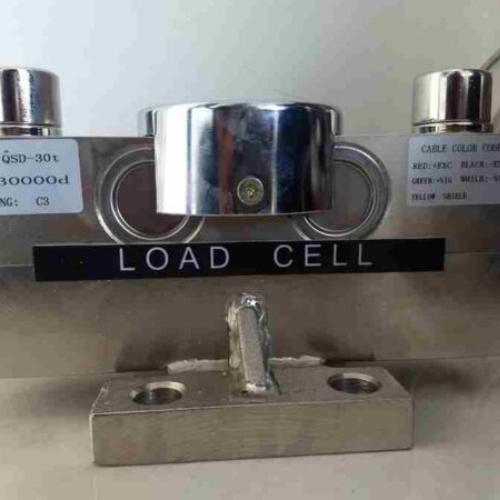

Analog Type

• Type of Load Cell : Multi Ended Shear Beam Type Load Cells
• Capacity Range : 30 Mt / 40 Mt
• Inbuilt Lightning Protection : Electronic Gas Discharge Tubes
• Bigger Sensing Element for Better Linearity
• Self Centring & higher Performance
• High Side Load Tolerances
• Anti-Lightning with GD Tubes - Protection against surge hit
• Anti Rusting Coating Protection
• Long Stainless steel Spring for Cable Protection
• Single Forged Based for Sturdy Performance
• IP68 Water Resistence
• Electro-less Nickle Plated Tool Alloys Steel
• Four Core Shielded PU Cable
• Inbuilt Lightning & Surge Protection Facility

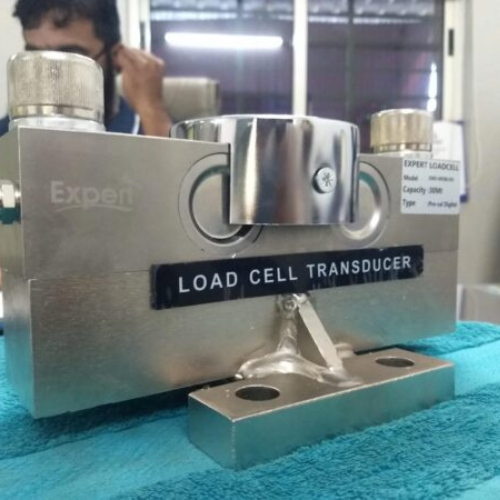

Pre-Cal Digital Type

• Type of Load Cell : Pre-Calibrated Digital Technology (European Design)
• Inbuilt Lightning Protection : Electronic Gas Discharge Tubes
• Not Required to Field Calibration (Auto Calibrated Technology)
• No Corner Variation & Software Corner adjustment technology
• Each & Every Error Show in Display (Internal Diagnostics)
• Bigger Sensing Element for Better Linearity and Self Centring
• High Side Load Tolerances with strong digital signal
• Anti-Lightning with GD Tubes - Protection against surge hit
• Long Stainless steel spring for Cable Protection
• Single Forged Based for Sturdy Performance
• IP68 Water Resistance
• Electro-less Nickle Plated Tool Alloys Steel
• Four Core Shielded PU Cable
• Inbuilt Lightning & Surge Protection Facility

Features of Analog Type Load Cells

Bigger Sensing Element for Better Linearity and Self Centring & higher Performance

ANALOGUE TECHNOLOGY	LOAD CELL CAPACITIES	UNITS
Standard Load Ranges	10, 15, 20, 30, 40, 50, 60	Tones
Nominal Sensitivity (Rated Output)	2.0 ± 0.1%	mV/V
Combined Error	< ± 0.013	Emax
Zero Signal Tolerance	0±2	%
Non-repeatability	< ± 0.015	%
Non-Linearity	< ± 0.020	%
Hysteresis	< ± 0.020	%
Creep (30 minutes)	< ± 0.012	%
Input Resistance	800 ± 5 Ohms	Ω
Output Resistance	705 ± 5 Ohms	Ω
Insulation Resistance	>5000	MΩ @ 100V DC
Temperature Effect on Zero Balance	± 0.002	% / °C – FSO
Temperature Effect on Span	± 0.0012	% / °C – FSO
Temperature Effect on Sensitivity (Output)	± 0.0015	% / °C – FSO
Compensated Temperature Range	0 ~ +50	°C
Operating Temperature Range	-50 ~ +70	°C
Safe Overload	150	%
Ultimate Overload	350	%
Allowable Side Load	50	%
Side Load Discrimination	500:1	–
Deflection	0.5 mm	At FSO
Tightening Torque	10	M.Kg.
Recommended Supply voltage	10	VDC
Maximum Supply Current	15	VDC
Environmental Protection	IP 68, IP69K	–
Cable Length (6 Wire 5.7mm Diameter Screened Polyurethane Cable)	20 Meter Long	–

DIGITAL TECHNOLOGY	LOAD CELL CAPACITIES	UNITS
Standard Load Ranges	10, 20, 30, 40	Tones
Rated Output – R.O.	240000	Counts
Rated Output – Tolerance	200	± Counts
Combined Error	0.0200	± % of Rated Output
Non-repeatability	0.0200	± % of Rated Output
Creep (30 minutes)	0.03	± % of Rated Output
Zero Return	0.03	± % of Rated Output
Temperature Effect on Zero Balance	< ± 0.002%	% / °C
Temperature Effect on Sensitivity	< ± 0.0012%	% / °C
Compensated Temperature Range	0 to +50	°C
Operating Temperature Range	-10 to +80	°C
Safe dead load	150	% of Emax
Ultimate Overload	350	% of Emax
Zero Balance	200	± Counts
Minimum Dead load	0	% of Emax
Data transmission Interface	RS485	–
Excitation Voltage	12.5 to 18	VDC
Recommended Excitation Voltage	8 – 18	VDC
Maximum current consumption	80	mA
Insulation Resistance	>5000	MΩ @ 100v
Maximum Supply Current	15-60	mA
Environmental Protection	IP 68	–
